MODEL

HP

Details

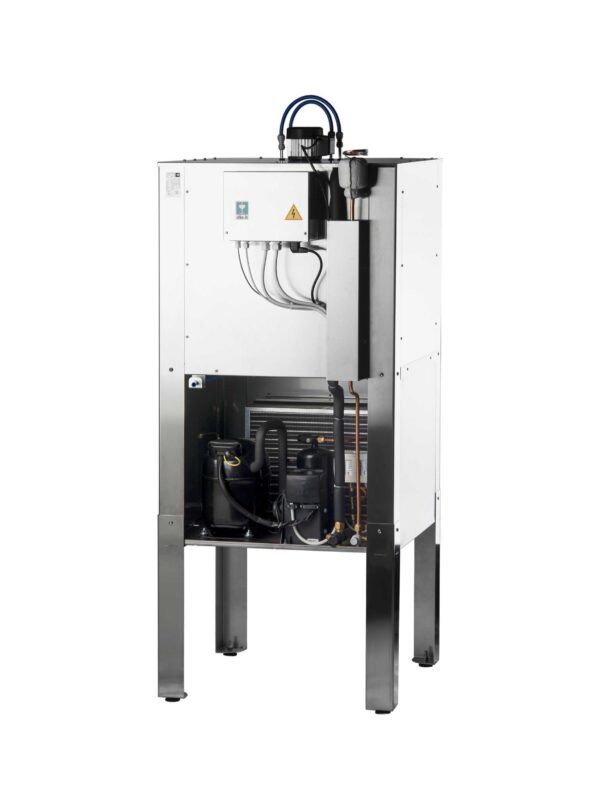

Professional chillers with ice bank, made entirely of stainless steel. The units are raised off the ground to ensure greater hygienic and food safety, as well as better air circulation and therefore greater durability.
The HP models are carefully designed and manufactured by us, combining experience and the highest quality components to meet the highest peaks demanded by water companies.

Technical Specifications

-
Operation with thermostatic expansion valve

-
High-efficiency, low-temperature condensation

-
Maximum and minimum pressure switches

-
Total accessibility for maintenance and service

-
Refrigerant separator tank

-
Cut-off valves and charge outlets on high and low pressure circuits

-
Stainless steel tank and evaporator

-
Control electronics of our own design without switching contacts with pressure switch and alarm management

-
Available with remote condensing unit

-
Available with water condensation

Technical Data

DESCRIPTION	UNITS OF MEASUREMENT	HP05	HP1
Maximum capacity	Litres / Hour (∆t 10°C)	600	820
Continuous capacity in 10 hours	Litres / Hour (∆t 10°C)	168	272
Compressor Power	CV	3/4	1
Tank volume	L	90	130
Ice bank	kg	60	90
Tank and evaporator	Material	Inox	Inox
Expansion	Type	Thermostatic valve	Thermostatic valve
Power supply	V	230	230
Absorption	W	1100	1500
Dimensions: width	mm	536	626
Dimensions: depth	mm	536	626
Dimensions: height	mm	1510	1510
